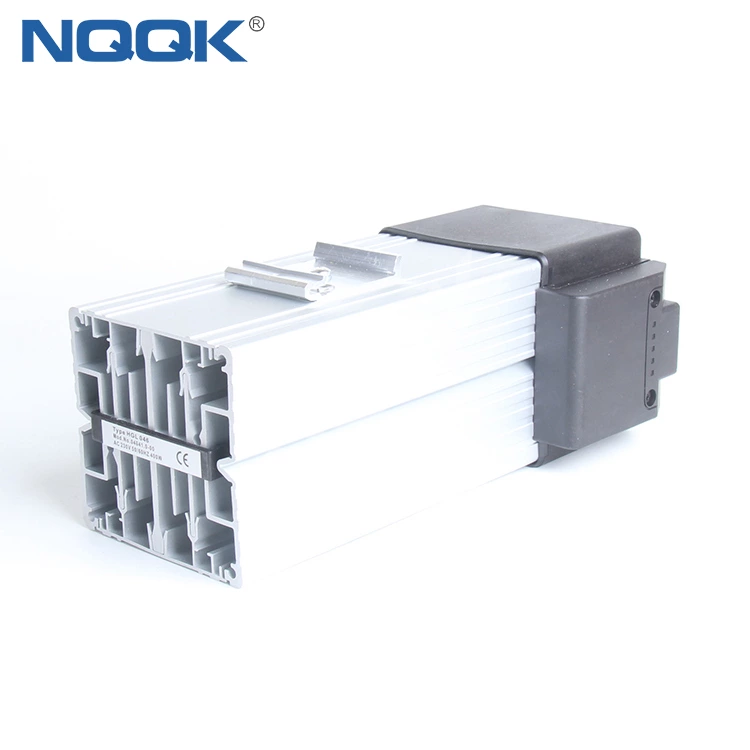

HGL 046 250W - 400W Compact design Fan Heater
HGL 046 250W - 400W Compact design Fan Heater
Compact design
Clip fixing
Long service life
Maintenance free
Temperature safety cut-out
Compact fan heater prevents formation of condensation.
- Brand
- NQQK
HGL 046 250W - 400W Compact design Fan Heater
- Compact design
- Clip fixing
- Long service life
- Maintenance free
- Temperature safety cut-out

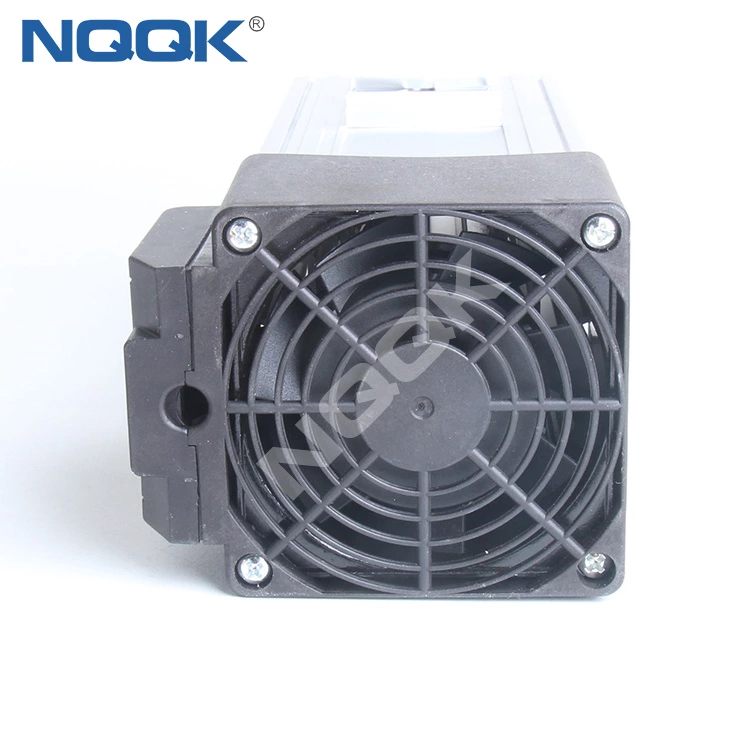

Compact fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. With internal terminal connector.
Technical Data:
| Heating element | Resistance heater |
| Temperature safety cut-out | To protect against overheating in case of fan failure, automatic reset |

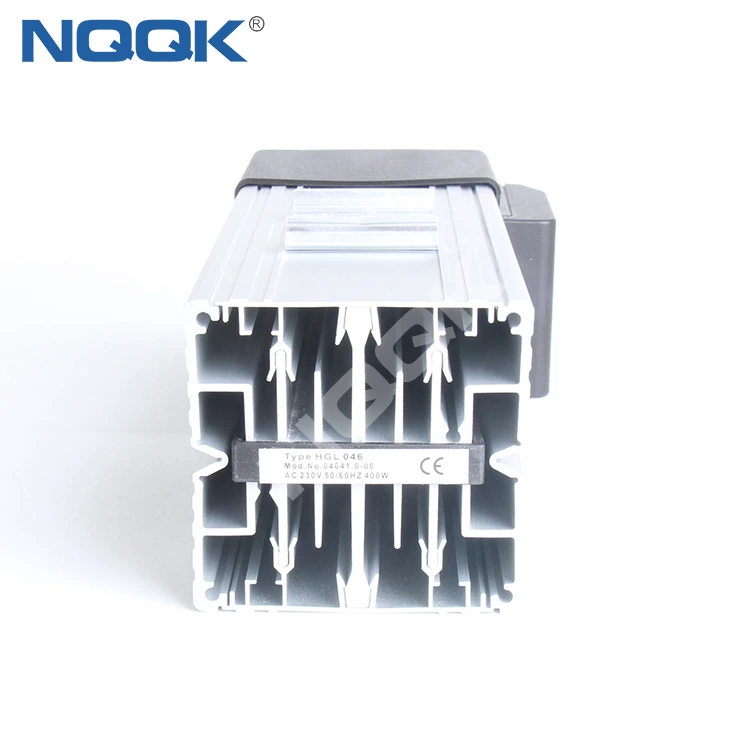

| Heater body | Anodised extruded aluminium profile |
| Surface temperature | Max. 75°C (400W) |
| Axial fan, ball bearing | Airflow, free flow |
| AC: 45m⊃3;/h (50HZ) or 54m⊃3;/h (60Hz) | |
| DC: 54m⊃3;/h | |
| Service life 50 000h at 25°C (77°F) | |
| Connection | Internal connection terminal 1.5mm⊃2; with strain relief, clamping torque 0.8Nm max. |
| Connection casing | Plastic according to UL94 V-0,black |
| Mounting | Clip for 35mm DIN rail, EN 60715 |
| Fitting position | Vertical airflow (air outlet up |
| Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
| Operating / Storage humidity | Max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |

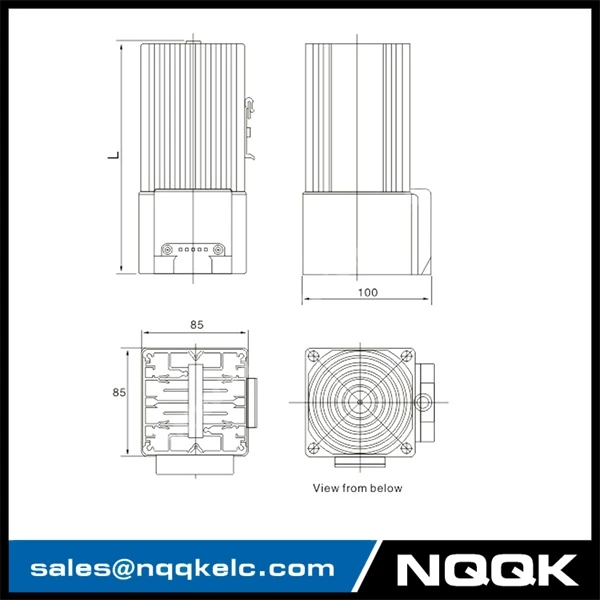

| Art. No. | Operating voltage | Heating capacity | Pre-fuse T (time delay) | Length (L) | Weight (approx.) | Approvals |
| 04640.0-00 | 230VAC, 50/60Hz | 250W | 2A | 182mm | 1.1kg | VDE + UL File No. E150057 |
| 04641.0-00 | 230VAC, 50/60Hz | 400W | 4A | 222mm | 1.4kg | VDE + UL File No. E150057 |
| 04640.9-00 | 120VAC, 50/60Hz | 250W | 4A | 182mm | 1.1kg | VDE + UL File No. E150057 |
| 04641.9-00 | 120VAC, 50/60Hz | 400W | 5A | 222mm | 1.4kg | VDE + UL File No. E150057 |
| 04640.1-00 | 24VDC | 250W | 16A | 182mm | 1.1kg | - |
| 04640.2-00 | 48VDC | 250W | 8A | 182mm | 1.1kg | - |
| 04641.2-00 | 48VDC | 400W | 12,5A | 222mm | 1.4kg | - |
