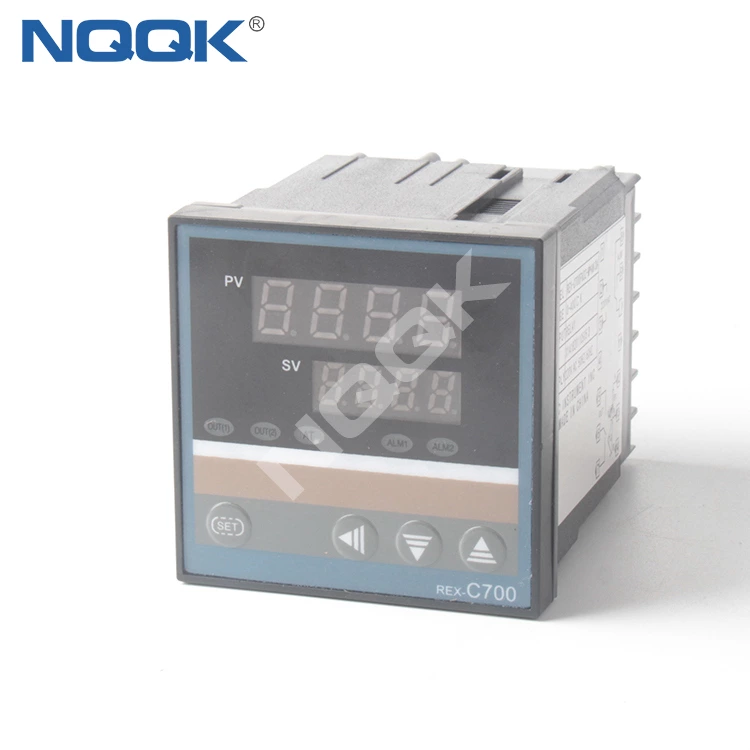

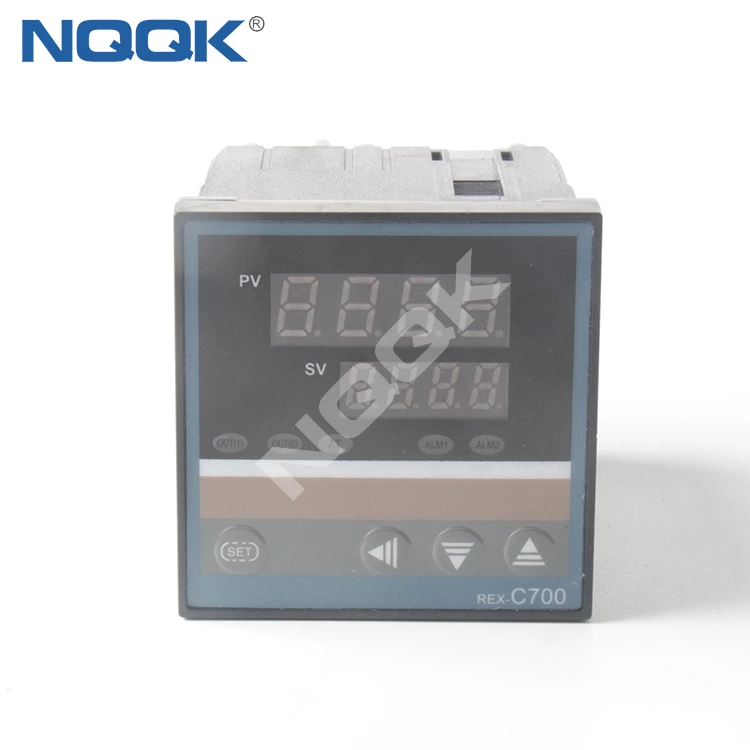

REX-C700 24VDC Digital Industrial Temperature Controller
- Brand
- NQQK
REX-C700 Intelligent adjustion Digital Industrial
Temperature Controller
Product Description
| Main Technical Index | |
|
Input |
Thermocouple(TC),Resistance Temperature Detector(RTD),Standard Current and voltage signals. |
| Display | Process Value(PV),Setting Value(SV):-1999~+1999 |
| Output( OUT1,OUT2) Alarm(Alarm1,Alarm2) Auto setting(AT) Display: LED | |
| Control way | 1).PID Control(including ON/OFF, position PID and continuous PID) |
| (2).Auto Setting Control | |
| Accuracy | Measurement Accuracy:±0.5%FS Compensation error of cold terminal:±2°C(amend within 0~50°C by soft) |
| Resolution:14bit. Sampling period:0.5Sec. | |
| Setting Range | Setting Value(SV):same range with PV |
| Proportional Band(P):0~full range(ON/OFF Control when set to 0) | |
| Integration Time(I):0~3600Sec (no integral action when set to 0) | |
| Derivative Time(D):0~3600Sec(no derivative action when set to 0) | |
| Proportional Period:1~100Sec | |
| On-off control output hysteretic loop width:1~100°C(or other PV units) | |
| Control Output | (1)Currency output: DC 0~10Ma,4~20mA(RL less than 500Ω) |
| (2)Voltage output: DC 0-5V,1-5V(RL more than 10K) | |
| (3)Relay output: Contact capacity:250V AC 3A(resistive load) | |
| (4)Voltage Impulse output:0-12V(applicable for solid state relay SSR) | |
| (5)Silicon Controlled Rectifier(SCR) output: zero-cross triggering or phase-shift triggering(resistive load) | |
| (6)Output Contact Capacity:250V AC 3A | |
| Alarm output | 2 groups output at most,12 modes |
| Inanlating resistanle | more than 50MΩ(500V DC) |
| Inanlating intensity | 1500V AC/min |
| Power consumed | less than 10 VA |
| Work condition | 0~50°C,30~85RH,no corrosive gas |
| Weight | abt.0.5Kg(CXTA type) |
| Model Name | |
| 1.Outline dimension: See the outline dimension picture | 7.Second control output( OUT2) (Cooling side) |
| 2.serial number | No mark: when the control mode is F or D |
| 3.Control Mode | M: Relay contact output T: Thyratron output |
| 0:PID operation and auto calculating (reverse operation) | V: Voltage impulse output 8: Current output(IC 4-20mA) |
| 1:PID operation and auto calculating(Forward operation) | T: Thyratron output |
| 4.Input mode:Refer to input Range Table | 8: Current output(IC 4-20mA) |
| 0:TC,RTD | 8.First alarm(ALM1), |
| 1:standard current 4~20mA,0~20mA | 9.Second alarm (ALM2) |
| 2:standard voltage:0~5V DC,1~5V DC | N:no alarm |
| 3:electronic sigral code:(Ω) | A: Upper-limit deviation alarm |
| 5.femperature unit | B: Lower-limit bias alarm |
| 0:degree celsius (°C) | C: Upper/lower limit bias alarm |
| 1:Fahrenheit (F) | D: alarm in area |
| 6.First control output(OUT1) (Heating side) | E: Standby upper-limit bias alarm attached |
| M: Relay contact output | F: Standby lower-limit bias alarm attached |
| V: Voltage impulse output | G: Standby upper/lower limit bias alarm |
| T: Thyratron output | H: Upper-limit input value alarm |
| 8: Current output(IC4-20mA) | J: lower-limit input alarm |
| G: Thyratron driving & triggering output | K: Standby upper-limit input alarm attached |
| L: Standby lower-limit input alarm attached |
Extemal dimensin
| REX-C100 | CXT -3000 | A | B | C | D | E | F | G | H |
| C100 | CXTG | 48 | 48 | 10 | 100 | 45 | 45 | 80 | 80 |
| C400 | CXTE | 96 | 48 | 10 | 100 | 92 | 45 | 116 | 80 |
| C410 | CXTF | 48 | 96 | 10 | 100 | 45 | 92 | 80 | 116 |
| C700 | CXTD | 72 | 72 | 10 | 100 | 68 | 65 | 90 | 96 |
| C900 | CXTA | 90 | 90 | 10 | 100 | 92 | 92 | 116 | 116 |
| C800 | CXTM | 80 | 160 | 10 | 100 | 76 | 152 | 105 | 190 |
