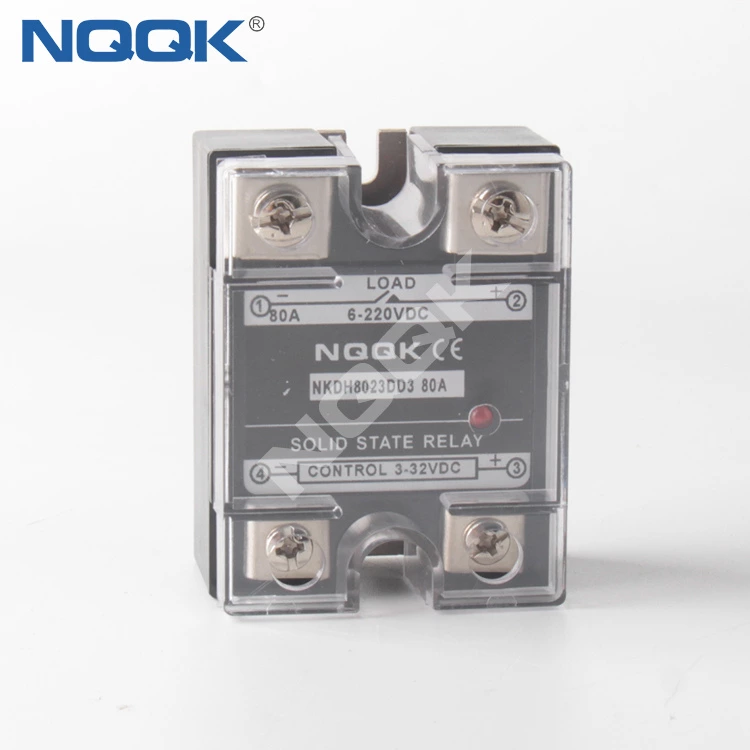

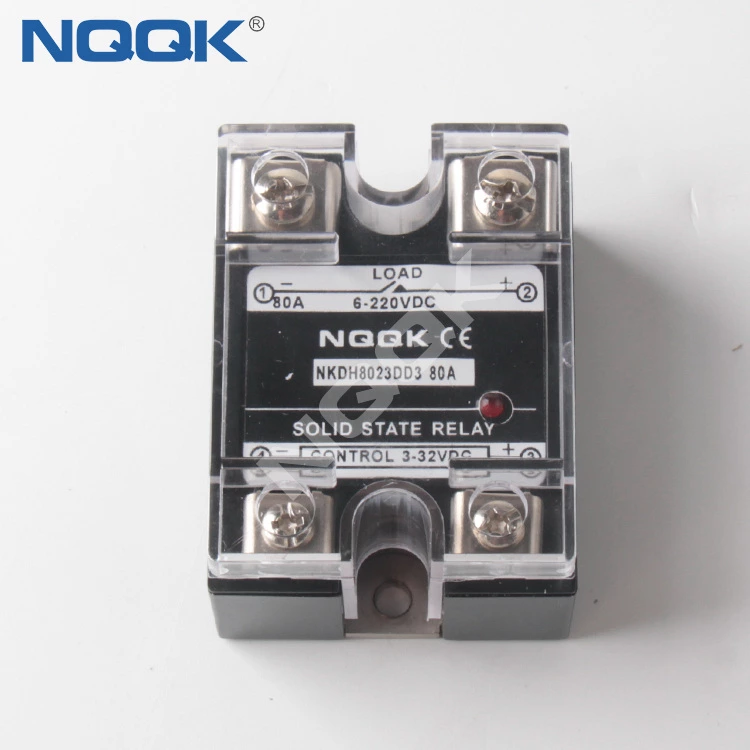

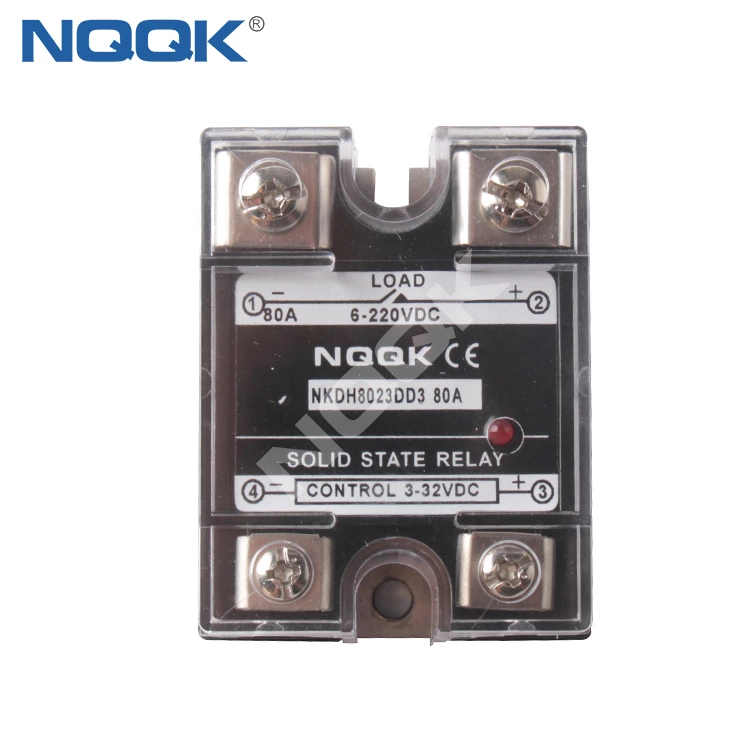

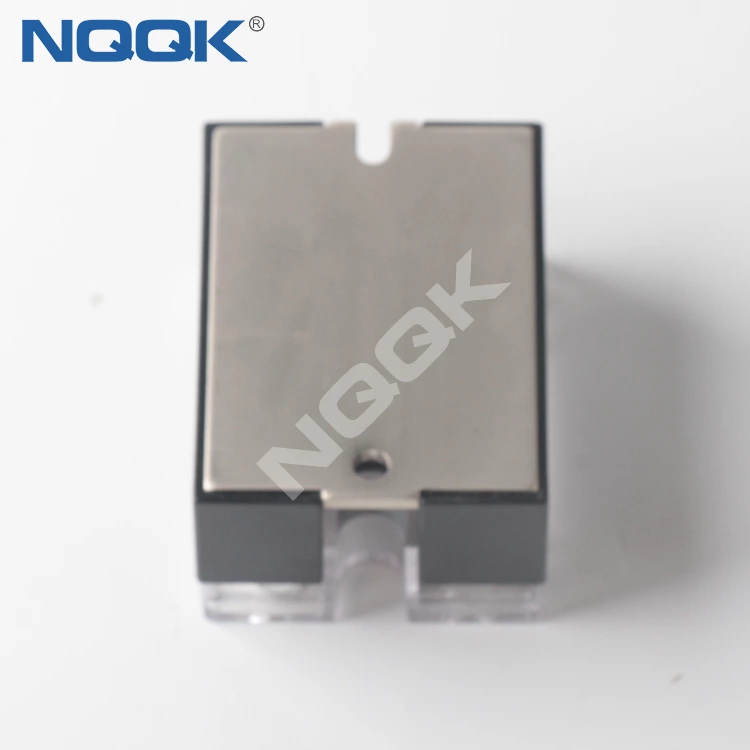

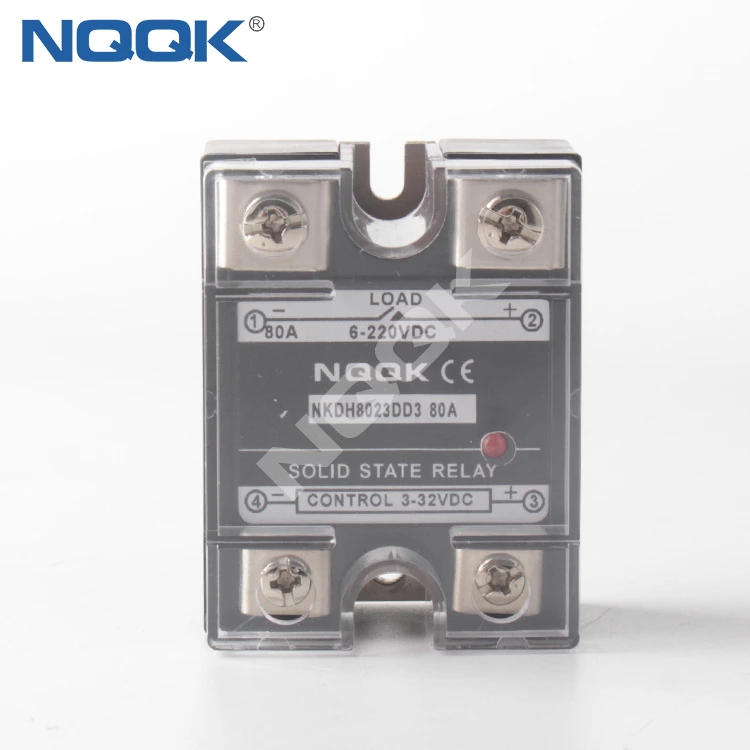

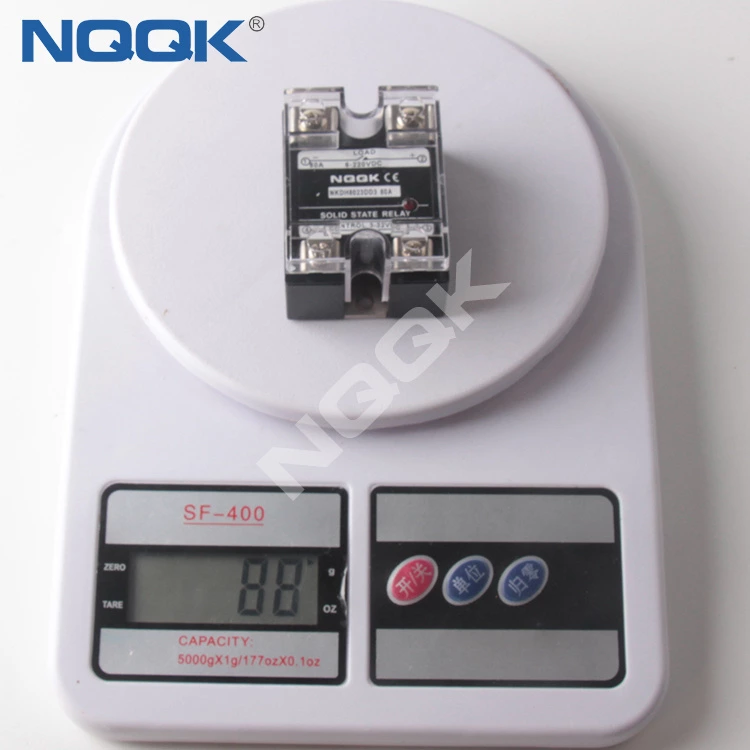

SOLID STATE RELAY NKDH8023DD3 80A

Features:

● DC control voltage 3~32Vdc

● MOSFET output

● Photo isolation

● Dielectric strength 2500V

● Long service life

● Panel mount

● There isn’t contact bounce and sparks during switching

● Low power consumption

Models explanation:
NKDH......40......48.......ZD3
     1           2        3          4


1.

NKDH – single-phase solid state relay (10 – 120А)

NKDM – industrial class solid state relay (100 – 500А)

NKTH – three-phase solid state relay (10 – 120А)

NKTR – motor reversing solid state relay (10 – 40А)

2.
40 – load current 40А (10 – 500А)

3.
48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC

4.
ZD3 – control signal type(swithing mode)

VA – variable resistor 220-560кОм/2Вт (phase control)

LA – analog signal 4-20мА (phase control)

VD – analog signal 0-10V DC (phase control)

ZD – control voltage 10-30V DC (switching at zero crossing)

ZD3 – control voltage 3-32V DC (switching at zero crossing)

ZA2 – control voltagte 70-280V AC (switching at zero crossing)

DD3 – control voltage 3-32V DC (DC voltage switching)

Types:

Technical specifications:

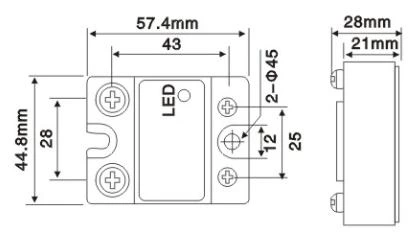

Outline dimensions & Wiring diagram:
