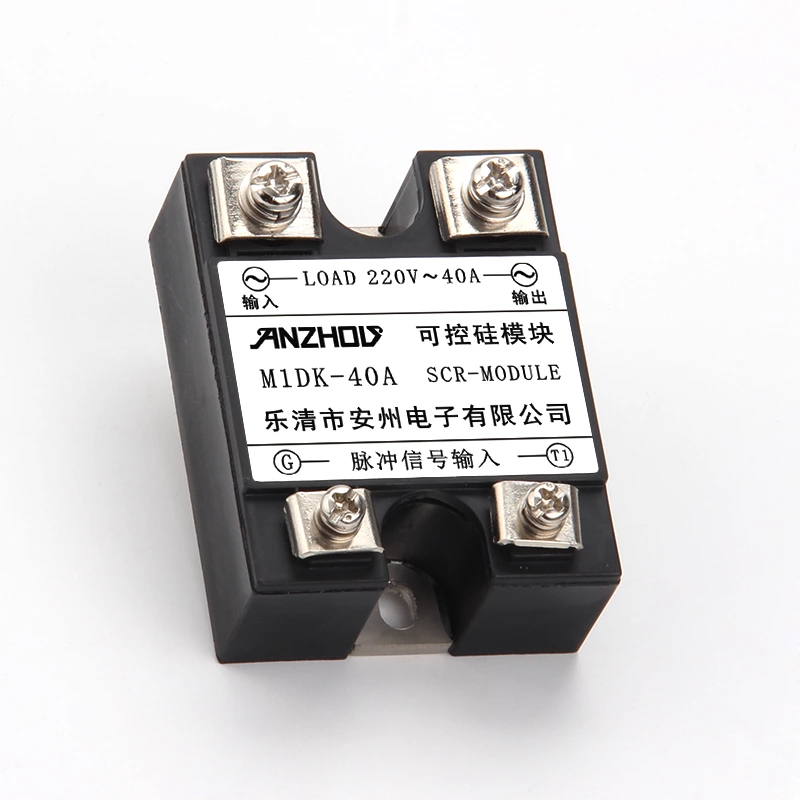

ANZHOUDZ SCR module M1DK-80A 60A 40A 25A SCR MODULE Solid State Relay for bottle blowing gas oven

ANZHOUDZ SCR module M1DK-80A 60A 40A 25A SCR MODULE Solid State Relay for bottle blowing gas oven

Product Description

AMP----10A, 25A, 40A, 60A, 80A, 100A, 120A
-----Pulse signal

•  Product overview
  Rated current: 10A-120Amps
  Rated voltage: 24-380VAC
  "Ultra-low" input current
  Low output off-state leakage current
  Low output on-state voltage drop
   R-C buffer with standard output
  Fully compatible control methods, convenient for computer networking and voltage regulation

Notice :
1. When the load current is 10A, a radiator must be installed; when it is 40A and above, a fan forced cooling or water cooling must be added.
2. When using an inductive load, be sure to connect a varistor in parallel with the output, the value of which is 1.6-1.9 times the load voltage.
