AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator

Features: ● Dielectric strength 4000V ● Photo isolation ● Zero cross or random turn-on ● Removable finger proof cover available ● Double SCR AC output ● Panel mount ● DC or AC control ● Built-
Brand
NQQK
Inquiry

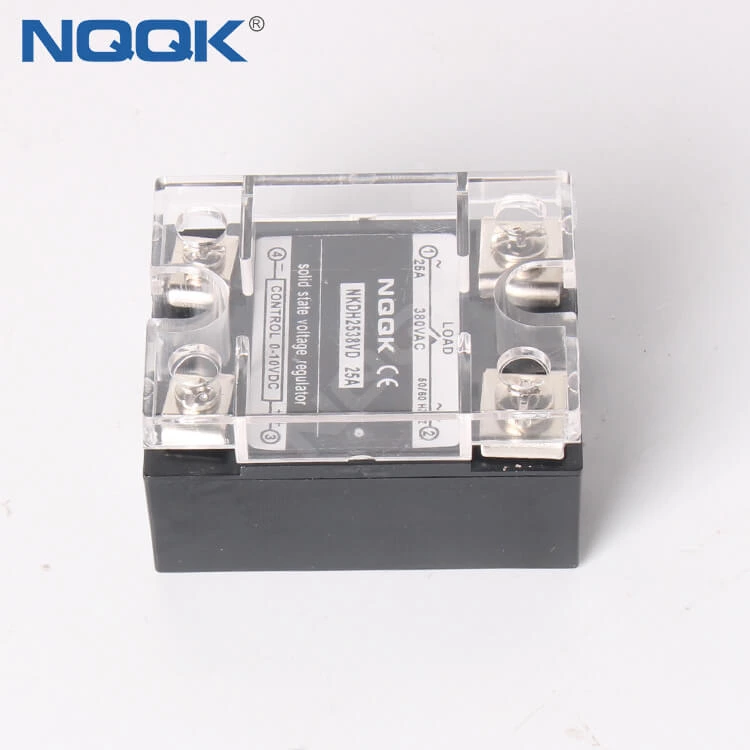

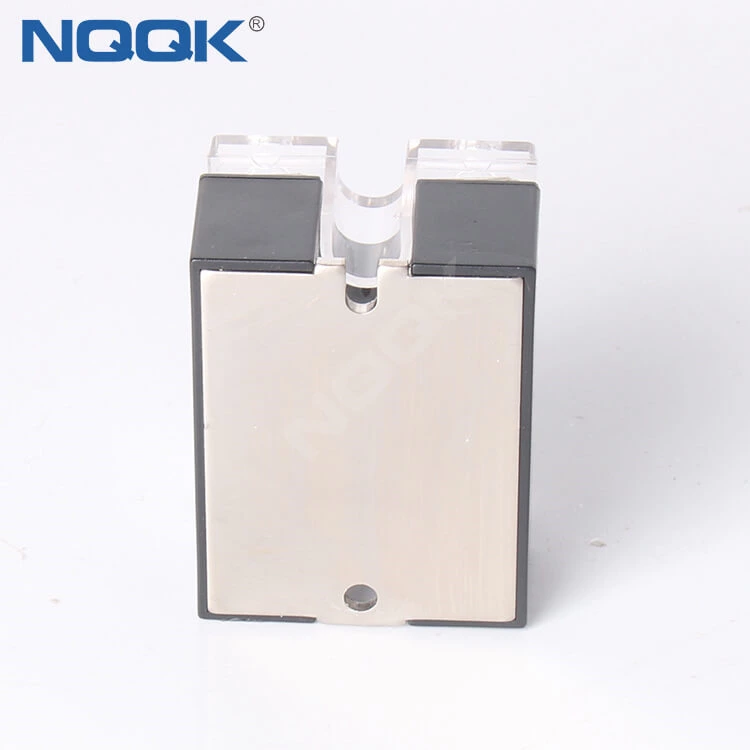

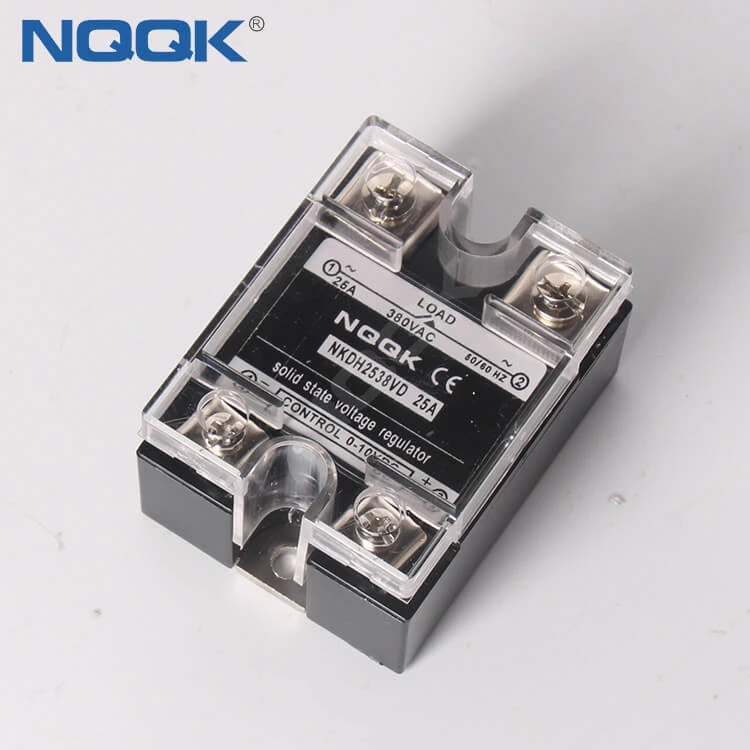

AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator
AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator

Features:

● Dielectric strength 4000V

● Photo isolation

● Zero cross or random turn-on

● Removable finger proof cover available

● Double SCR AC output

● Panel mount

● DC or AC control

● Built-in RC


Models explanation:
NKDH......40......48.......ZD3
     1           2        3          4


1.

NKDH – single-phase solid state relay (10 – 120А)

NKDM – industrial class solid state relay (100 – 500А)

NKTH – three-phase solid state relay (10 – 120А)

NKTR – motor reversing solid state relay (10 – 40А)

2.
40 – load current 40А (10 – 500А)

3.
48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC

4.
ZD3 – control signal type(swithing mode)

VA – variable resistor 220-560кОм/2Вт (phase control)

LA – analog signal 4-20мА (phase control)

VD – analog signal 0-10V DC (phase control)

ZD – control voltage 10-30V DC (switching at zero crossing)

ZD3 – control voltage 3-32V DC (switching at zero crossing)

ZA2 – control voltagte 70-280V AC (switching at zero crossing)

DD3 – control voltage 3-32V DC (DC voltage switching)


Types:

Loda voltage  Control Signal  Rated current
10A 25A 40A
480V AC  3-32 VDC NKDH1048ZD3 NKDH2548ZD3 NKDH4048ZD3
70-280V AC NKDH1048ZA3 NKDH2548ZA3 NKDH4048ZA3



Loda voltage  Control Signal  Rated current
60A 80A 100A 120A
480V AC  3-32 VDC NKDH6048ZD3 NKDH8048ZD3 NKDH100ZD3 NKDH12048ZD3
70-280V AC NKDH6048ZA3 NKDH8048ZA3 NKDH10048ZA3 NKDH12048ZA3


Technical specifications:

Model NKDHxxxxxZD3 NKDHxxxxxZA2
Load voltage 24-480VAC
Control voltage 3-32V DC 70-280V AC
Current consumption in control circuit 3-25mA ≤12mA
Voltage ON/OFF 3V DC / 1V DC 70V DC / 10V DC
Peak voltage  1000V AC
Voltage drop in load circuuit ≤1.6V AC
Leakage current(off-state) ≤10mA
Switching time ≤10mS
LED indication yes
Dielectric strength 2500V AC (1min)
Insulation resistance 500MΩ with 500V DC
Operating temperature -30°c ~ +75°c
Relative Humidity ≤95%(non-condensing)
Dimensions 57.4x44.8x32mm
Mounting method Screws on
Weight ≤135g

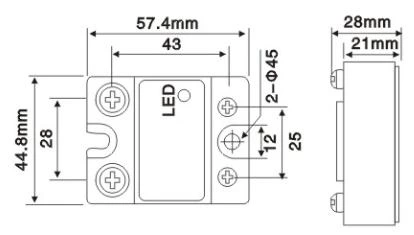

Outline dimensions & Wiring diagram:

AC to DC 10-120A Single Phase AC SSR Solid State Relay with LED indicator
