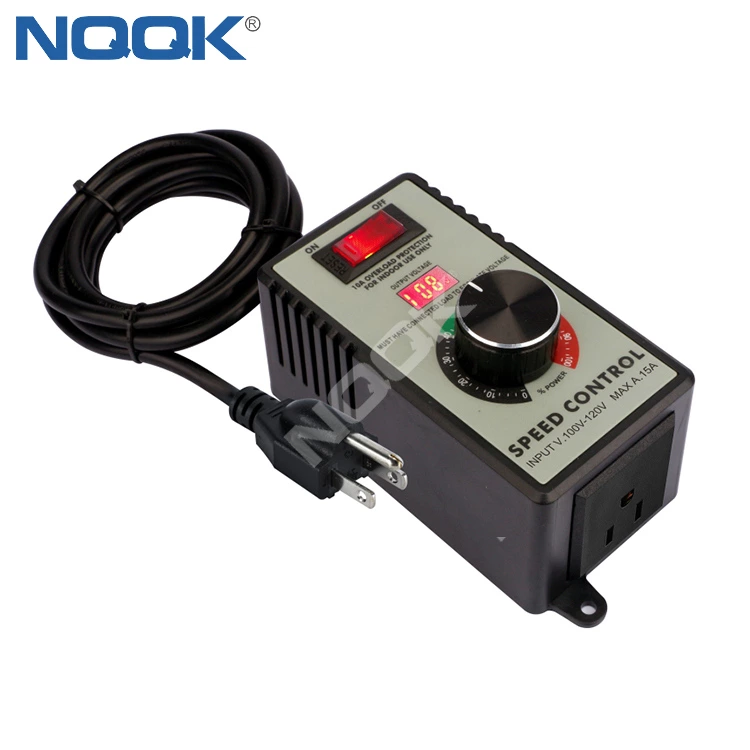

4000W Thyristor Electronic Voltage Regulator/Speed Controller/High Power Regulator

Thyristor Electronic Voltage Regulator/Speed Controller/High Power Regulator

Technical Parameter
Product model:WF-830B
Input voltage: AC220V 50/60 Hz
Output voltage: 0-220V adjustable ( Output voltage display)
Limit power:4000W (adapt to 2000W resistive load)
Adjustable voltage range: 0-220V Promise adjustable (under load conditions) step-down to OV, step-up 10V from 9A
Rated current: 10A
Max current: 18A(Overload protection 10A)

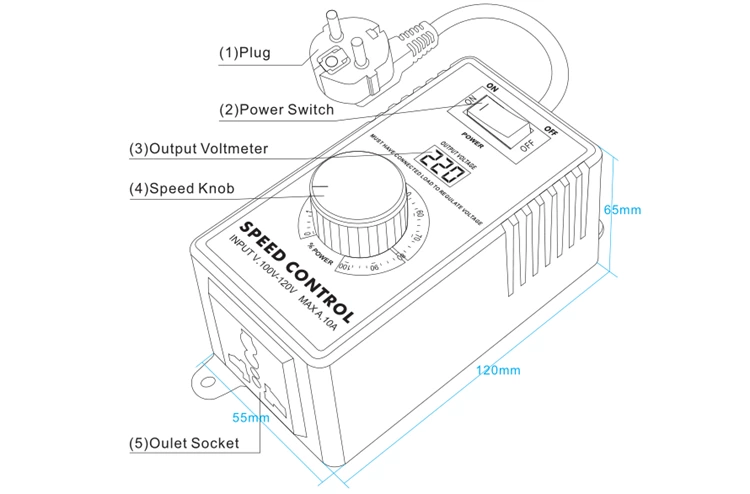

Product size: 120 * 65 * 55mm
Product weight: 480g
Package size: 150 * 120 * 110mm
Package weight: 500g
MEAS: 485 * 305 * 450mm
QTY: 32 PCS
G.W: 16 KGS
N.W: 15.5 KGS

Precautions and instructions for use

1.When the machine is empty,the measured output voltage is a virtual voltageand a load above 20W must be connected to measure the correct output voltage(Attention must first load and then adjust the voltage).
2.Please use within the rated power and voltage rangeonly suitable for AC grid
3.The 4000W mentioned above refers to the limit power when working in a resistive load.The inductive load is 1/3 of the resistive load.The resistive load refers to the tunasten filamentlampheatina wireet.and the inductive loac refers to the series motor.And so onthere are circuit board electronic products used with caution
4.It is a normal phenomenon that there is sliaht heat during workPlease use it in a dry and ventilated place.
5.This product is Flame-retardant plastic shell must be safely grounded power outlet must be grounded
6.The machine does not adapt to work on soft start or slow startvoltage requlator.

Precautions and instructions for use

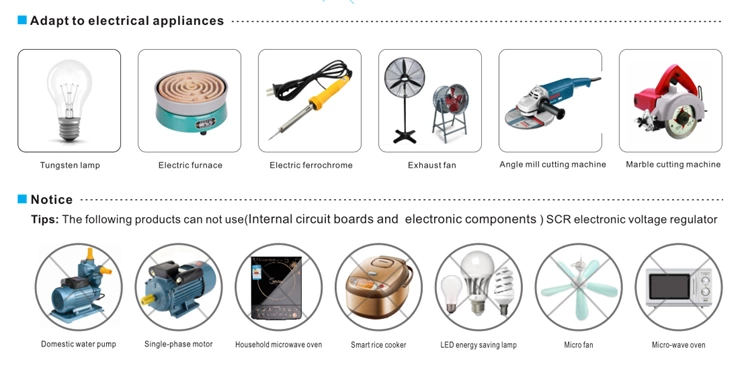

Adapt to electrical appliances

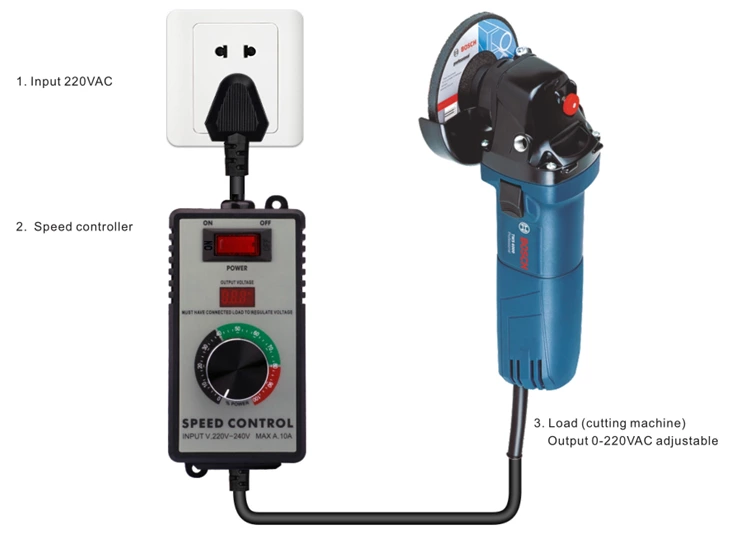

Installation wiring method

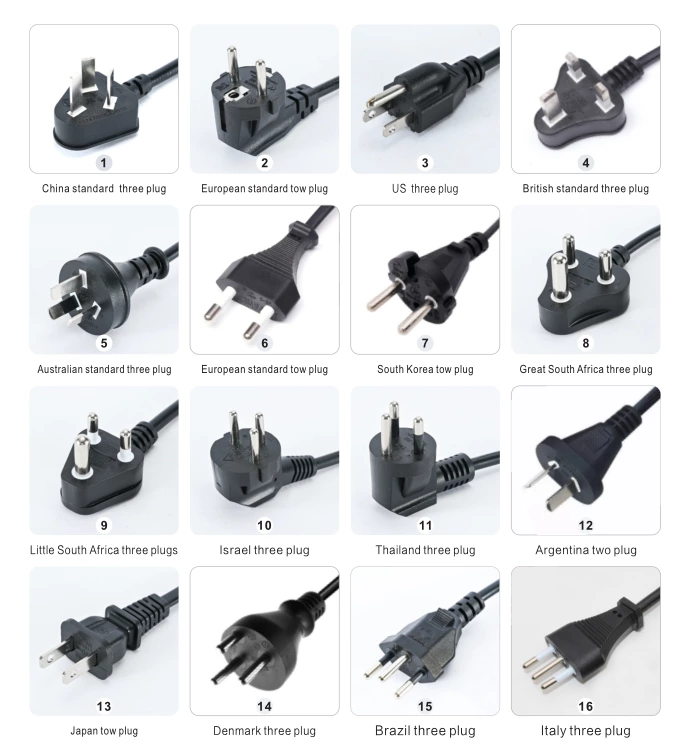

Various countries power cord plug

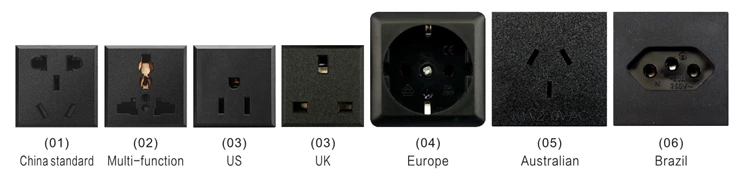

Various countries socket
