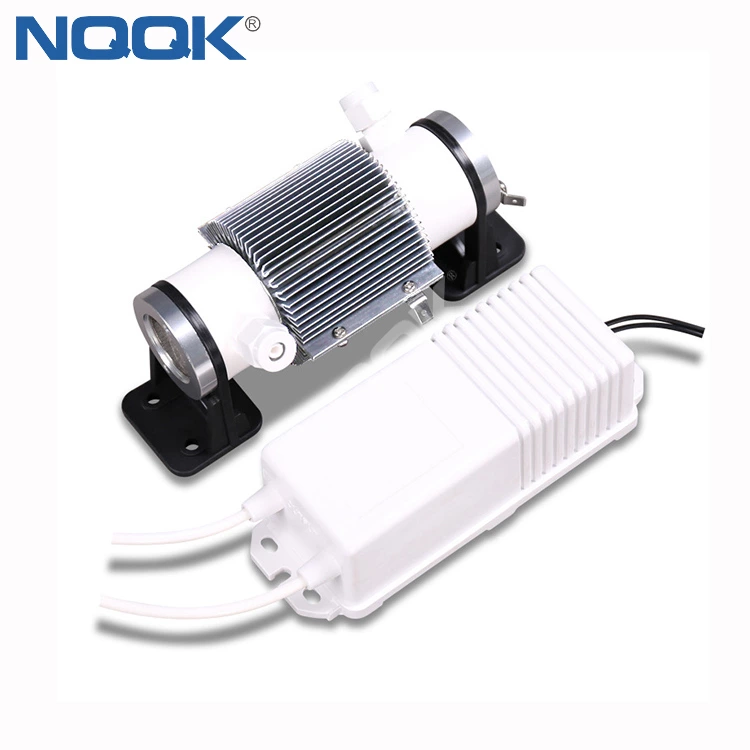

Single tube 5g/h ozone production 12VDC 24VDC 110VAC 220VAC Air-cooled quartz tube Ozone Generator
- Brand
- NQQK
Single tube 5g/h ozone production 12VDC 24VDC 110VAC 220VAC Air-cooled quartz tube Ozone Generator
Product Description
| Function / Features | ||||||||||
| Double air-cooled quartz tube | ||||||||||
| 1. Overview | ||||||||||
| The dual-air-cooled quartz ozone generating tube is a product independently developed by our company. This technology is designed for natural heat dissipation with the unique radiator design of Chuanghuan, and a large-area surrounding radiator on the outside, so that the temperature rise of the ozone generating unit is low. Stable output, continuous operation | ||||||||||
| 2. Functions/Features | ||||||||||
| High ozone concentration-high-precision quartz is used as the medium | ||||||||||
| Long service life-316L stainless steel inner electrode; anti-oxidation plastic and fluorine rubber seal | ||||||||||
| Low temperature rise-double air-cooled diffuser inside and outside | ||||||||||
| 3. Application | ||||||||||
| It can be used for ozone machine to assemble medical equipment, disinfection equipment, etc. | ||||||||||
| Both air source and oxygen source conditions can be used | ||||||||||
| 4. Ozone tube specifications | ||||||||||
| This dual-air-cooled quartz ozone tube has four output specifications: 3g/h, 5g/h, 6g/h, 7g/h |
| 5. Configure ozone power supply | ||||||||||
| Two types of power supply are available: modular power supply/open power supply | ||||||||||
| Power configuration | ||||||||||
| Two power supply types are available: modular power supply/open power supply | ||||||||||
| Modular power supply features: moisture-proof, shock-proof, low cost | ||||||||||
| Open power supply features: adjustable current and frequency, fault protection, alarm function | ||||||||||
| Note: CK-PTF7G ozone tube can only be matched with open power | ||||||||||
| Technical parameters | ||||||||||
| 6. Technical parameters |
| ITEM | UNIT | CH-PBF | ||||
| MODEL | CH-PBF3G | CH-PBF5G | CH-PBF6G | CH-PBF7G | ||
| Oxygen concentration | mg/L | 30-70 | 30-70 | 30-70 | 30-70 | |
| Ozone production | g/h | 3 | 5 | 6 | 7 | |
| Power | W(±10%) | 50 | 55 | 80 | 85 | |
| Input power | * | AC220V/110V / DC12V/24V | ||||
| Generation tube size | mm | 164×80×90 | 185×80×90 | 203×80×90 | 213×80×90 | |
| Tube weight | kg | 0.55 | 0.66 | 0.75 | 0.82 | |
| M module power supply | Size | mm | 154×60×43 | 176×66×51 | 176×66×51 | 176×66×51 |
| weight | kg | 0.5 | 0.5 | 0.5 | 0.5 | |
| A1 open power | Size | mm | 158×75×68 | 158×75×68 | 158×75×68 | 158×75×68 |
| weight | kg | 0.6 | 0.6 | 0.6 | 0.6 | |
| Working frequency: 15-23KHz (±10%). Outer diameter of trachea: ED Φ6 | ||||||||||
| Note: The above parameters are tested under the condition of ambient temperature 20℃ and oxygen. The specific parameters and configuration are subject to the actual product. | ||||||||||
