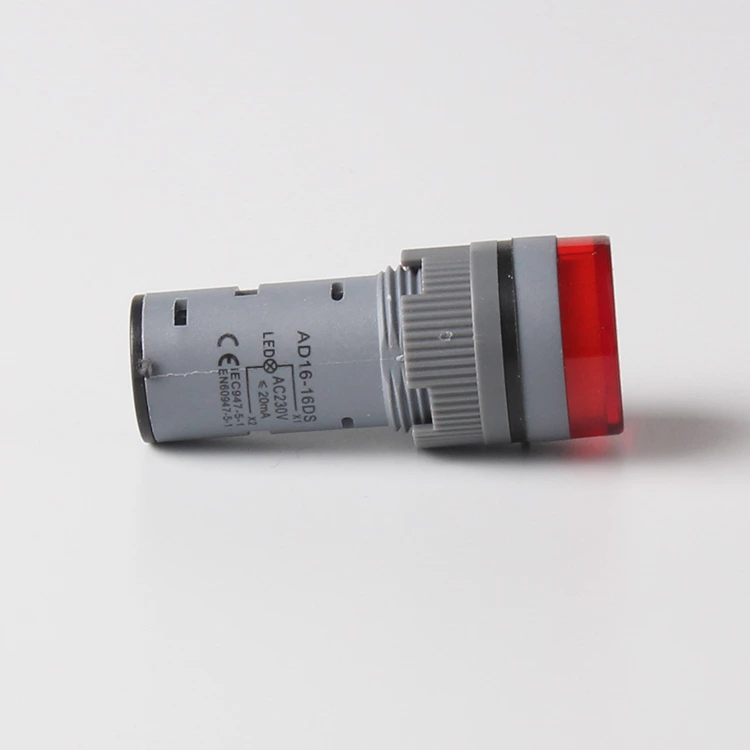

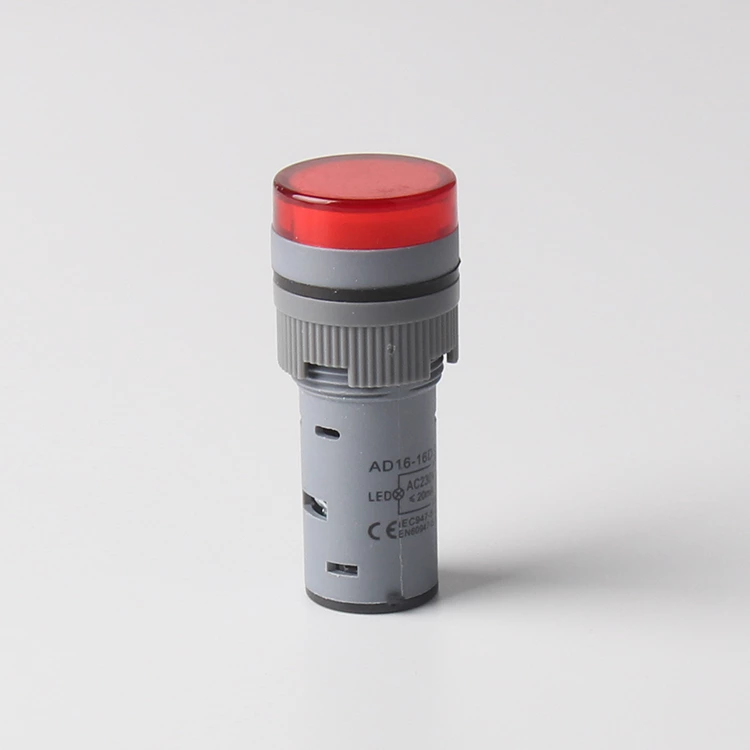

AD16-16DS 16 mm 230V red LED Lighting Signal Indicator lamp
Product Description
AD16-22D indicator light

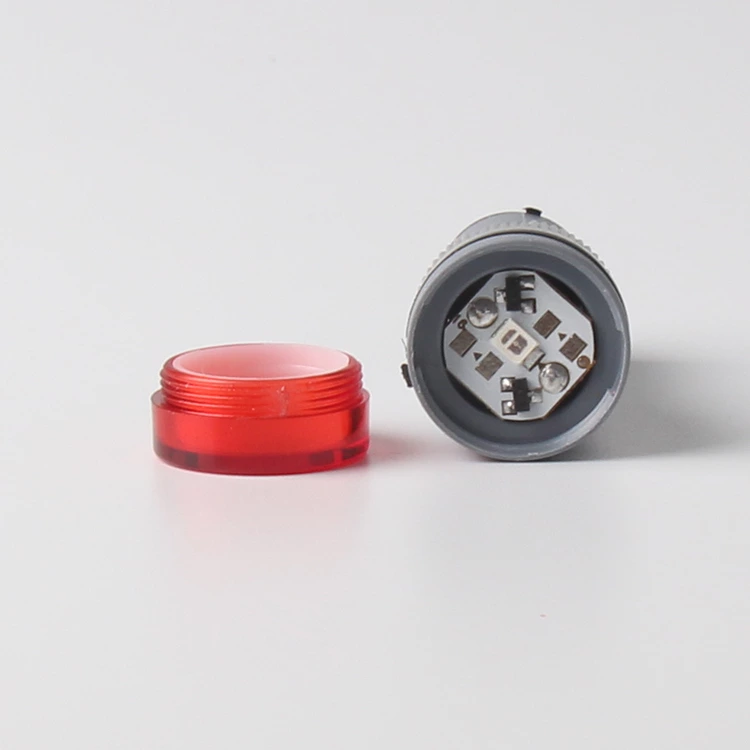

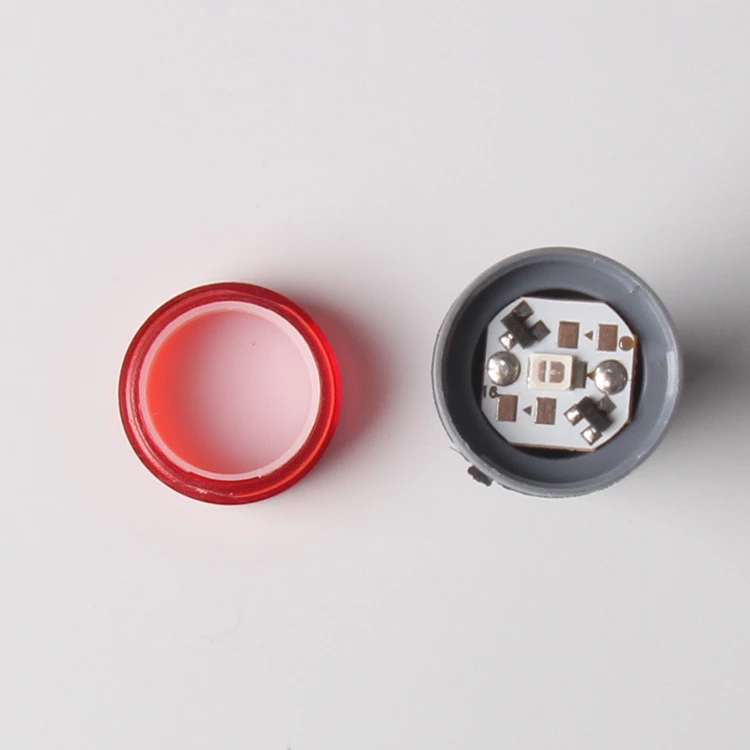

AD16 series use pure color high brightness LED light emitting chip as light source, long service life, low energy consumption, small volume, light weight, head in a variety of styles, high brightness, good reliability, beautiful shape and sophisticated manufacture, it is suitable to be used in electricity, telecommunications, machine tools, ships, textile, printing, mining machinery and other equipment line indication signal, notice signal, accident signal and other indication signal.
1.Voltage: 6V 12V 24V 36V 48V 110V 220V 380V AC/DC
2.Red / Yellow / Green / Blue / White
Working condition:
1.Operational temperature: -25~+55
2.Relative humidity: ≤98%
3.Normally workable when vibration frequency is 2-80Hz with acceleration of 0.7g.
4.Pollution degree is 3 ,the installation category class is III
5.One with "TH" mark can work in the conditioan of moist heat
Apply to Signal lines for directions signal, anticipating signal, fault signal and any other signal, which in electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, etc.
Technical data:
1.Power frequency with stand voltage:2.5KV per minite.(effective AC value)
2.Insulation resistance: ≥2MΩ
3.Allowable voltage fluctuation:±20%
4.Continous operating life: 30000H
5.Brightness: ≥100cd/m2
6.CTI ≥ 100
7.Protective degreee of the head IP65,IP67 is available on request
| Type | AD16-22 |
| Expected life | 30,000hours |
| Rated current | 20Ma |
| Insulating resistance | 2MΩ |
| AC voltage fluctuation | ±20% |
| Opertaing temperature | -25+55 |
| Vibration frequency | 2.80Hz acceleration 0.7g |
| IP rating | IP65 |
| Box quantity | 10 |
Packaging:
Selling Units: Multiple of 1000
Package size per batch: 54X33X32 cm

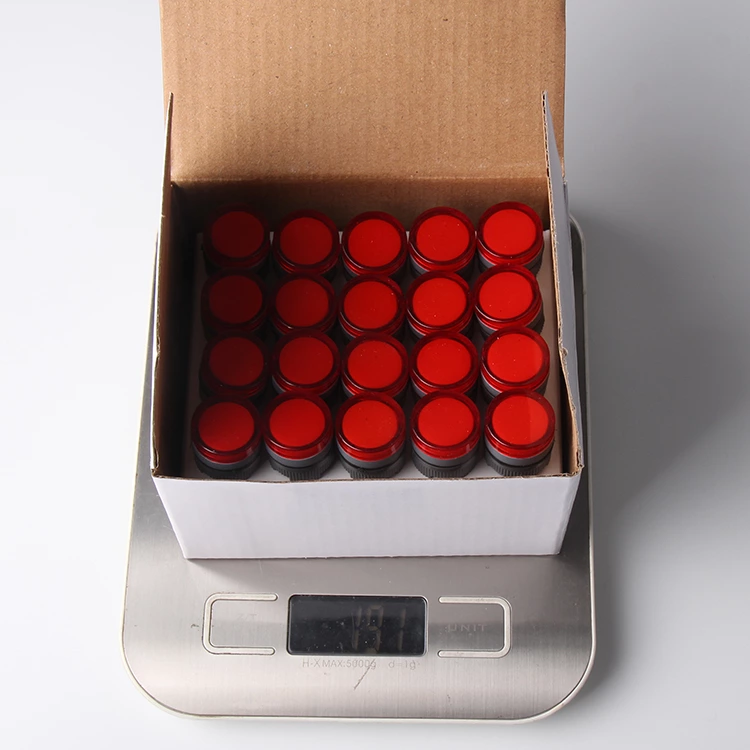

Gross weight per batch: 22.5 KG

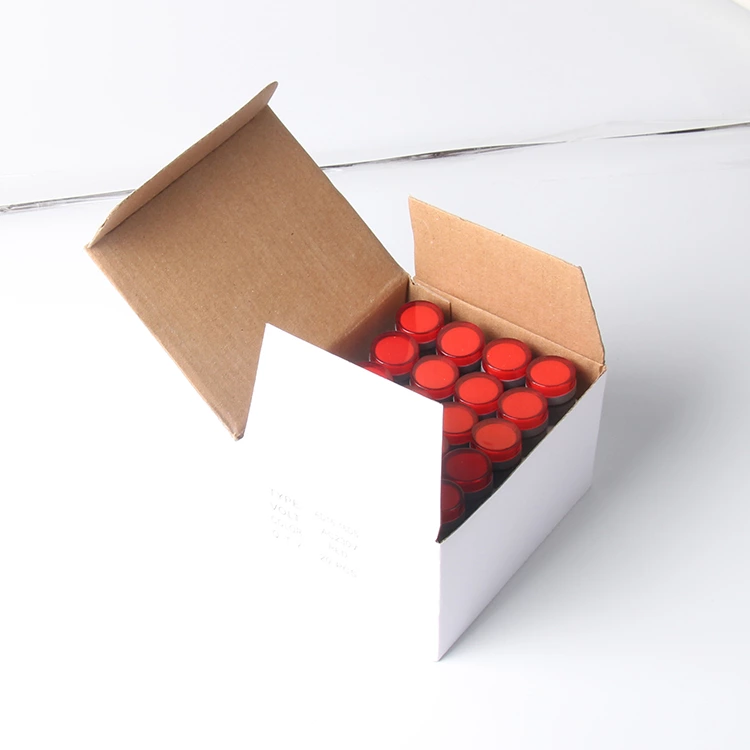

Package Type: packing : Standard export box and carton 1000pcs packed in each carton As customer's requests
