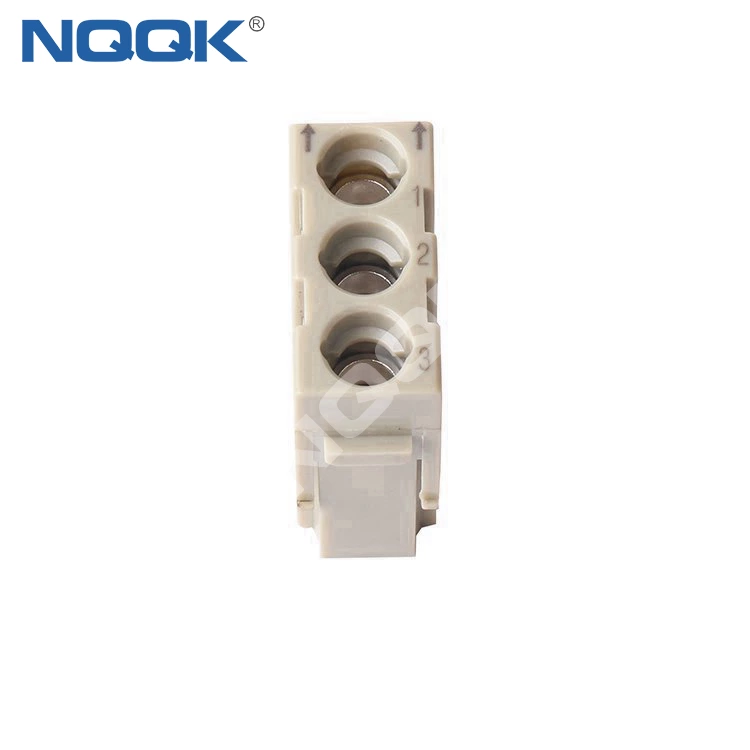

HMK-003-F 3 pin 40A 690V Female Module Plugin Cable heavy duty connector
- Brand
- NQQK
HMK-003-F 3 pin 40A 690V Female Module Plugin Cable heavy duty connector
Product Description
--------- Product Details ---------
Welcome to NQQK, Welcome to contact us
--------- Product Image ---------
Welcome to NQQK, Welcome to contact us
Insert: NQQK
| Number of Contacts | 3 |
| Electrical Data Acc.to | EN61984 |
| Raled Current | 40A |
| Raled Voltage | 690V |
| Raled Impulse Voltage | 8KV |
| Pollution Degree | 3 |
| Flammability Acc.to (UL94) | VO |
| Insulation Resistance | ≥10 10Ω |
| Material | Polycarbonate |
| Limiting Temperature | -40℃±125℃ |
| Mechanical Working Life | ≥500 |
| Rated Voltage Acc.To UL | 600V |
Contacts: NQQK
|
Material |
Copper Alloy |
| Surface | Hard-silver Plated |
| Contact Resistance | 0.3mΩ |
| Screw Terminal | |
| -Wire Gauge | 2.5-10mm2 |
| -AWG | 14-8 |
| -Hexagonal Driver | SW 2 |
| Stripping Length - mm | 2.5 4 6 10 |
| AWG | 5+1 5+1 8+1 11+1 |
| Tightening Torque - mm2 | 2.5 4 6 10 |
| Nm | 1.5 1.5 2 2 |
| -mm2 | 2.5 4 6 10 |
| -Nm | 1.5 1.5 2 2 |
Application: NQQK
NQQK heavy duty connector are extensively used in quiepment that requires electrical and signal connections,such as mold,machinery,construction machinery, textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical electrical equipment.
HM 12 pin Module Multi Cable Crimp TerminaHMK-003-F 3 pin 40A 690V Female Module Plugin Cable heavy duty connector HMK-003-F 3 pin 40A 690V Female Module Plugin Cable heavy duty connector HMK-003-F 3 pin 40A 690V Female Module Plugin Cable heavy duty connector mp Terminal heavy duty connector
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
FAQ
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: 1-2 years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide
customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
