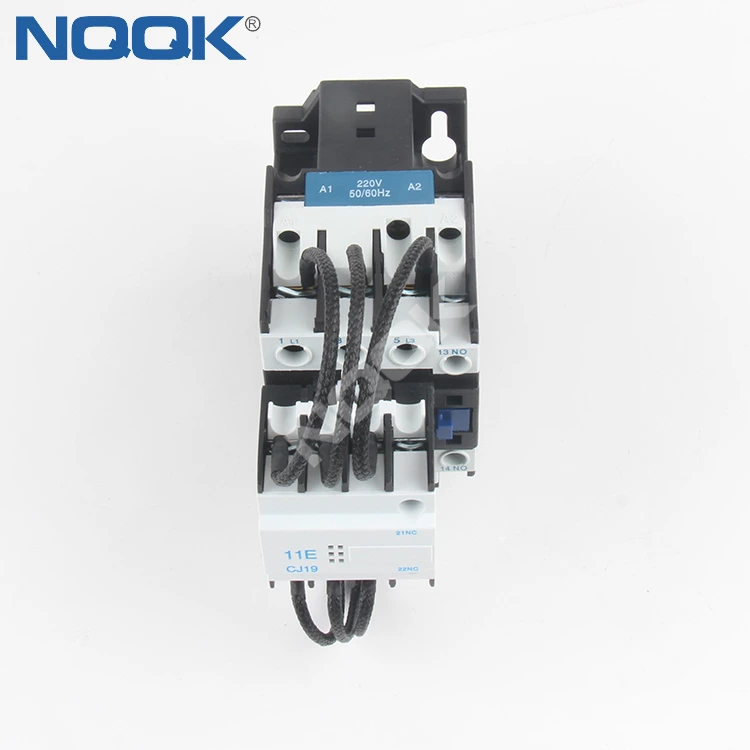

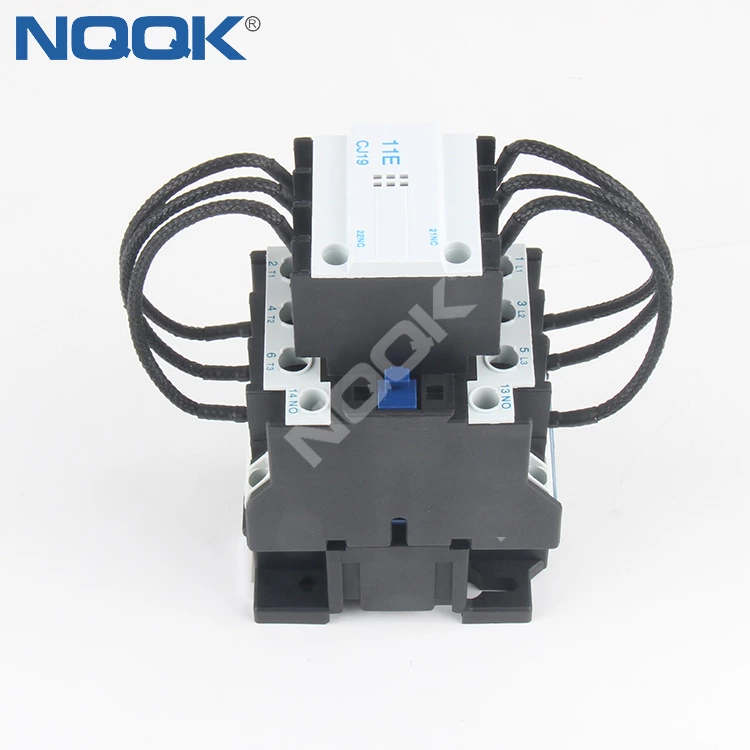

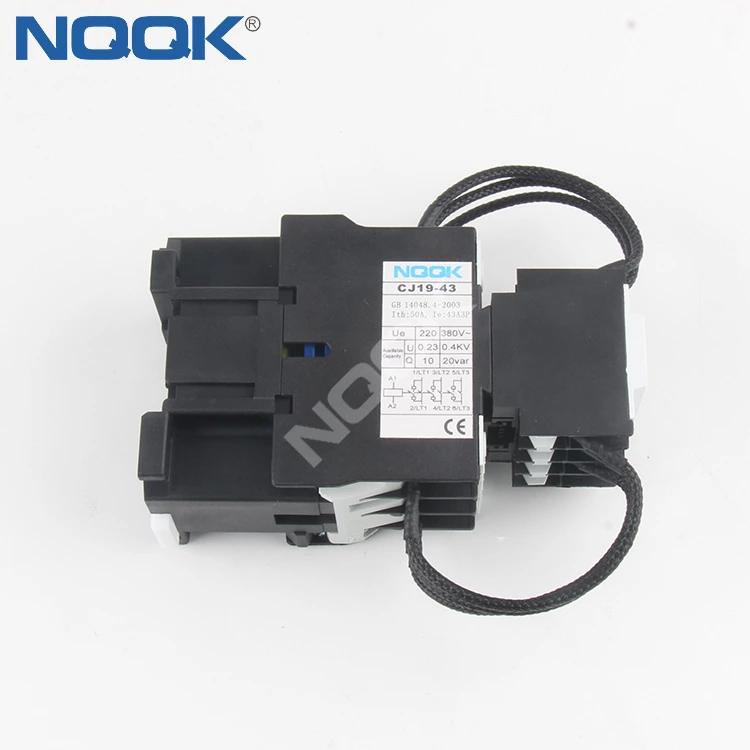

CJ19 Capacitor loaded electromagnetic AC contactor CJ19-43 Capacitive contactor
- Brand
- NQQK
CJ19 Capacitor loaded electromagnetic AC contactor CJ19-43 Capacitive contactor
Product Description
Application:
CJ19 Series changeover capacitor contactor is especially used for low voltage shunt capacitor switching. And it widely used in reactive power compensation equipment in which AC 50HZ, voltage 380V, inrush current system in the contactor can decrease shock to capacitor and lower switching overvoltagein while breaking a circuit.Moreover, It can replace transfer device which are composed of one contactor and three current limiting reactors, small, light, joins convenient and reliable, hige capacity of turning on/off.
This product conforms to GB14048.4, IEC60947-4-1 standard.

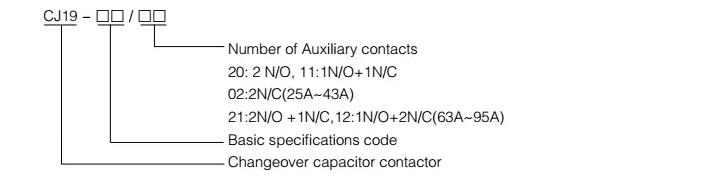

Model Explanation:
Normal Running And Installtion Conditions:
1. Ambient air temperature: -5℃+40℃. the average value should not exceed +35℃ within 24 hours
2. Elevation: at most 2000m.
3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be
at the most 50%.When at relatively low temperatures, it could have higher relative humidity.Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
4. Class of pollution:Class 3
5. Installation category: Ⅲ
6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed II
7. Impact shock: Product should be installed and used in the place where often shakes and impacts.
Main Technical Parameter:
| Model | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-80 | CJ19-95 | |
| Rated operational current(A) | 380V | 17 | 23 | 29 | 43 | 50 | 63 |
| Controllable capacity(kVar) | 230V | 6.5 | 8.5 | 10 | 20 | 21 | 23 |
| 400V | 12 | 16.7 | 20 | 32 | 38 | 42 | |
| Rated insulation voltage(V) | 690 | 690 | 690 | 690 | 690 | 690 | |
| Controlling inrush current capacity | 20In | 20In | 20In | 20In | 20In | 20In | |
| Electric fife (104 operations ) | 10 | 10 | 10 | 8 | 8 | 8 | |

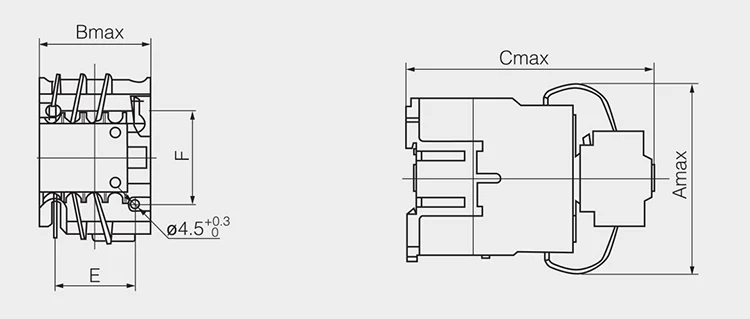

CJ19 25-63
CJ19 63-95
echnical Data:
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |

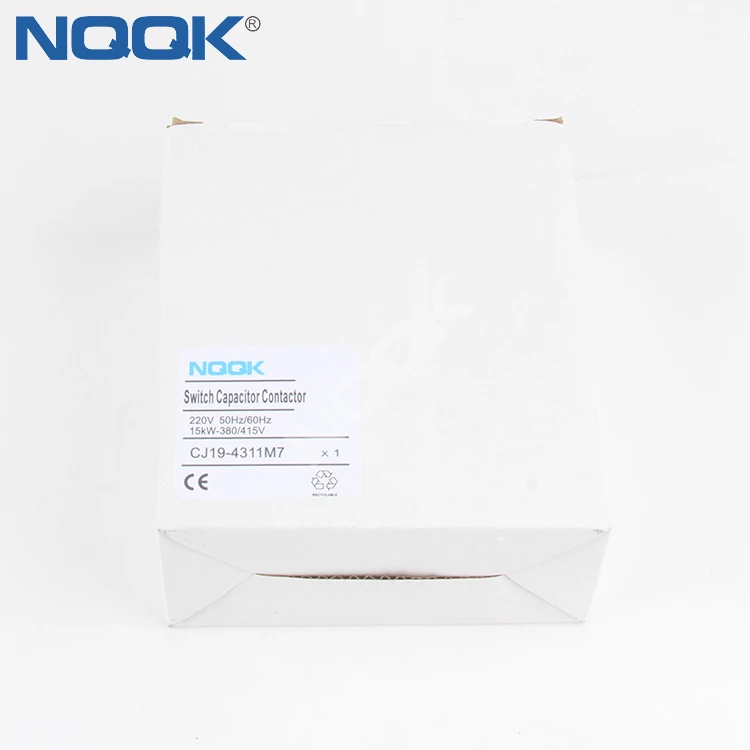

| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
